API 6D Flanged Floating Ball Valves
As a flanged floating ball valve manufacturer, we strive to provide our American and Canadian customers with the most reliable and efficient flanged ball valves out there. Our TVC flanged floating ball valves meet all industry standards.
We’re a trusted floating ball valve manufacturer, and our team is available to answer any questions you may have. We’re dedicated to providing our clients with top-of-the-line engineered valve products and customer service. Browse the features and application standards for our two-piece bolted flanged floating ball valves below, and contact us
if you have any questions.
General Design Features
- TNACE MR0175 - (ISO 15156) (Stainless Steel ball/stem configuration)
- API 608 Compliant
- Blowout proof stem
- Forged Body on Class 900 and 1500
- Weather Seal (Class 600 and higher)
- Actuator mounting pad (4 bolt machined)
- Secondary Metal-to-Metal Sealing
- Full rated bi-directional dead-end service
- Antistatic Device
- Lockable handle
- O-Ring design (standard)
Applicable Standards
API-American Petroleum Institute
- Spec. 608 Metal Ball Valves
- Spec. 6D Specification for pipeline valves.
- Std. 598 Valve inspection and test. **
- Std. 607 Fire test for soft seated quarter-turn valves.
ASME/ANSI-American National Standard
- B16.5 Steel pipe flanges and flanged fittings.
- B16.10 Face-to-face and end-to-end dimensions of ferrous valves.
- B16.34 Steel valves- Flanged and butt-welding ends.
EC-European Community
- CE Marked (P.E.D. 97/23/EC, Cat. 3) **
ISO-International Org. for Standardization
- ISO 9001 Quality systems-Model for quality assurance 2000 in design/development, production, installation and servicing.
- ISO 15156 Materials for use in H2S containing environments in oil and gas production.
MSS-Manufacturers Standardization Society
- SP 6 Standard finishes for contact faces of pipe flanges and connecting- end flanges of valves and fittings.
- SP 25 Standard marking system for valves, fittings, flanges and unions.
- SP 44 Steel pipeline flanges.
- SP 55 Quality standard for steel castings visual method.
NACE-National Assoc. of Corrosion Engineers
- MR0175 Sulfide stress cracking resistant metallic materials for oilfield equipment. (Superseded by ISO 15156)
**P.O.A. consult factory.

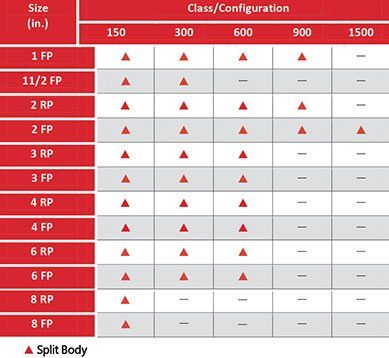

Order Matrix
View MatrixBill of Materials
View BillApplicable Design Standards
API American Petroleum Institute
6D Specification for Pipeline Valves
598 Valve Inspection and Test
607 Fire test for Soft Seated Quarter Turn Valves
608 Metal Ball Valves
ASME American Society of Mechanic Engineers
B16.5 Steel Pipe Flanges and Flanged Fittings
B16.10 Face to Face and End to End Dimensions of Ferrous Valves
B16.34 Steel Valves—Flanged and Butt Welding Ends
N31.4 Liquid Petroleum Transportation Piping Systems
B31.8 Gas Transmission and Distribution Piping Systems
ISO International Organization for Standardization
ISO 9001-2000 Quality Systems for Design/Development, Production, Installation, Servicing
ISO 5211 Topworks for Mounting Dimensions
BS British Standard
BS 5351 Steel Ball Valves for the Petroleum, Petrochemical, and Allied Industries
MSS Manufacturers Standardization Society
SP 25 Standard Marking System for Valves, Fittings, Flanges and Unions
SP 45 Bypass and Drain Connection Standard
NACE National Association of Corrosion Engineers
MR0175 Sulfide Stress Cracking Resistant Metallic Materials for Oilfield Equipment

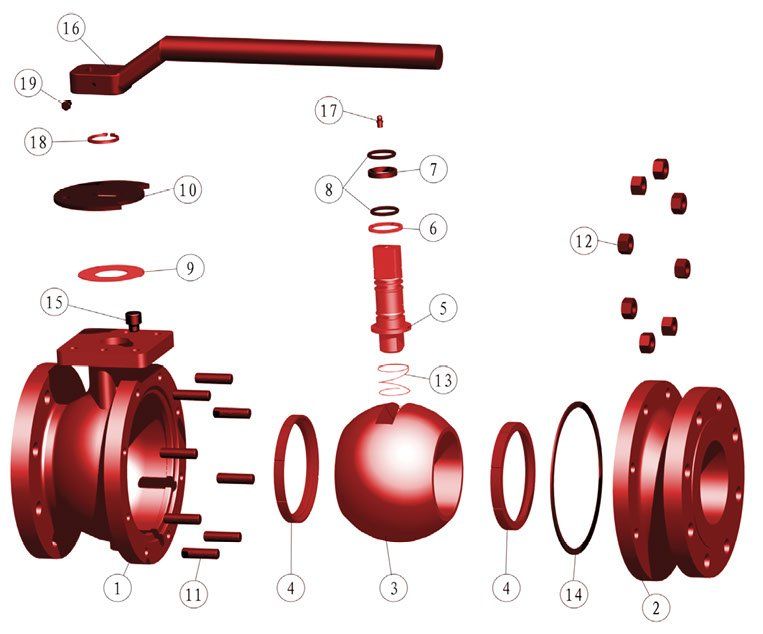

Component Parts
Dimensional Data (in.,mm)
Dimensional Data of 150/300
View DimensionsDimensional Data of 600
View DimensionsDimensional Data of 900
View DimensionsDimensional Data of 1500

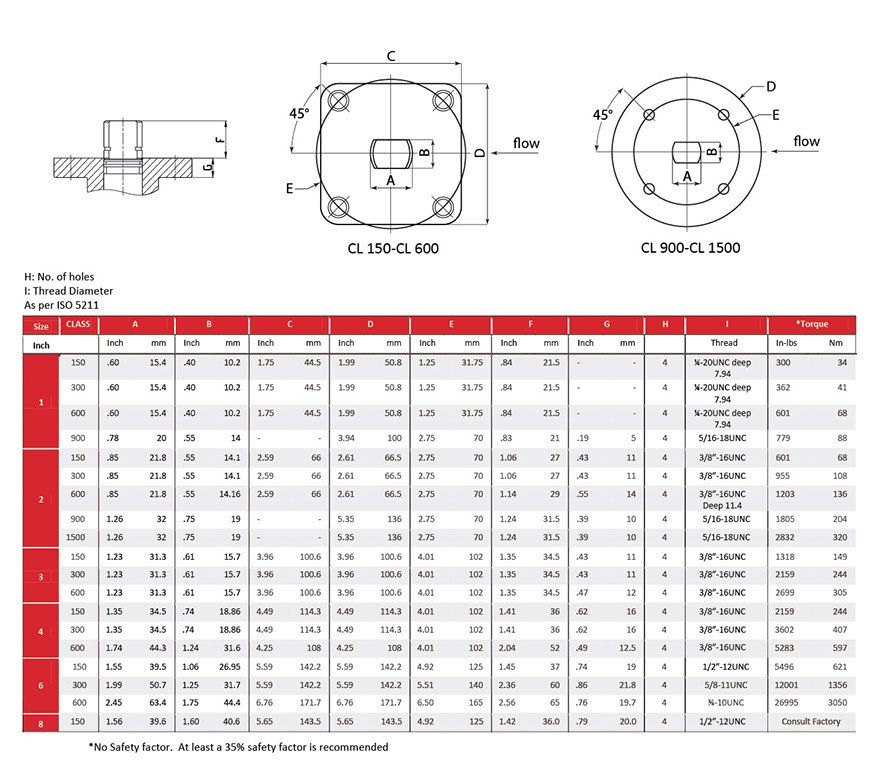

View DimensionsTopworks & Stem Torque
